Description

Description:

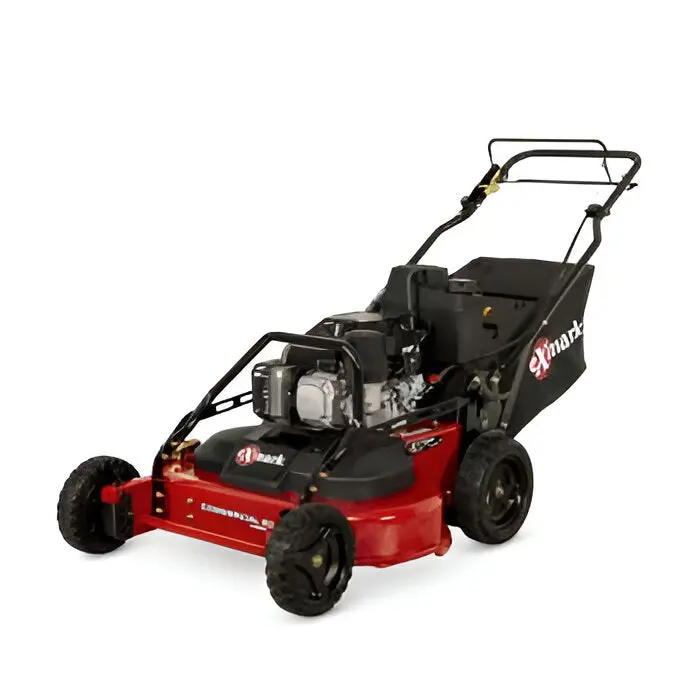

Do you want the portability and versatility of a 30-inch deck width in your next commercial walk-behind mower? Look no further than the Exmark Commercial 30-inch X-Series. Travel at variable speeds between 0 and 3.8 mph thanks to a powerful Kawasaki engine. Produce precise turf length with Exmark’s patented height adjustment system. Tackle any project with fewer breaks with a one-gallon fuel tank.

Features:

• Increased Power- The Commercial 30 X-Series is equipped with a single-cylinder commercial engine. The increased displacement of the powerful commercial engine gives it more torque than competing engines to quickly power through the toughest, thickest grass.
• Upgraded Transmission- The heavy-duty wet clutch transmission and self-tensioning belt drive are designed for minimum maintenance and maximum reliability in the most demanding commercial applications. The Commercial 30 X-Series also includes a parking brake.
• Increased Wheel Torque- The upgraded heavy-duty transmission takes advantage of the engine’s additional power. It delivers increased wheel torque to power up hills, with easier tracking on side hills. The positive drive design couples both drive wheels for maximum traction in all conditions.

Specification:

Engine:

• Brand: Kohler®
• Model: CV200
• Displacement: 200 cc
• Series: Command Pro
• Speed: 3,500 RPM
• Fuel System: Carbureted
• Fuel Type: Gas Carbureted
• Fuel Capacity: 1 gallon (3.8 L)
• Air Filter: Dual element air cleaner
• Engine Spec: PH-CV200-3001

Transmission:

• Drive: Belt-Drive
• Drive Description: Self-propelled; rear-wheel gear-driven

Tires:

• Front Caster Tires: 9″ x 2.4″; semi-pneumatic
• Drive Tires: 10.5″ x 3.0″; semi-pneumatic

Deck:

• Width: 30 inches
• Style: Fixed Deck
• Style Description: Fixed deck; Rear-discharge bagger and mulch plug or side discharge standard
• Construction: 4.6″ Deep Stamped Steel with welded reinforcement
• Cutting Heights: 1.5″ (3.8 cm) to 5.0″ (12.7 cm) in 0.5″ (1.3 cm) increments
• Blade Tip Speed: Approximately 18,500 fpm
• Blades: 2 Blades at 15.4″ Length

Safety:

• Package: Blade Brake Clutch (BBC)
• Parking Brake: Caliper Disc Brake

Additional Features:

• Fuel Indicator: None
• Carb Compliant: No
• Bag Capacity: 2.5 bushels (20 gallons)

Dimensions:

• Width: 31.9 in. (81 cm)
• Height: 38.3 in. (97.2 cm)
• Length: 68 in. (172.7 cm)
• Curb Weight: 185 lbs (84 kg)

table { width: 100%; border-collapse: collapse; text-align: center; border: 1px solid black } td, th { border: 1px solid #dddddd; padding: 8px; }

Width	Weight	Height	Length
31.9 Inch	185 Pounds	38.3 Inch	68 Inch
