Description

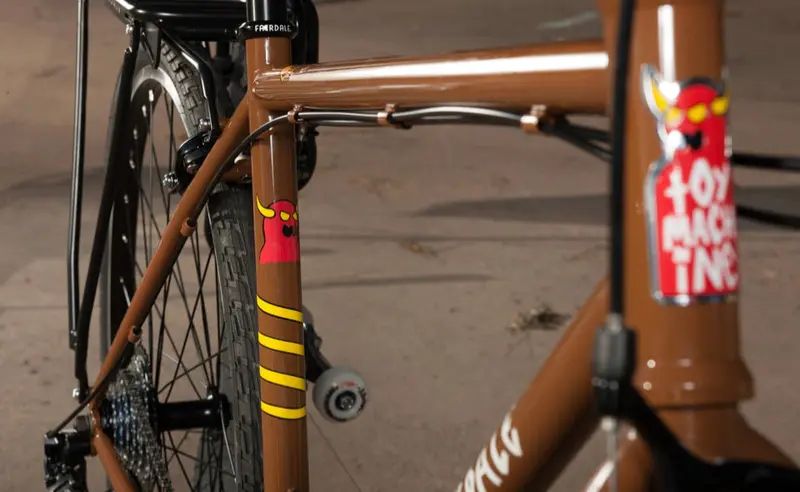

Fairdale Bikes has teamed up with legendary skate brand Toy Machine to offer this limited edition bike.
Toy Machine Lookfar comes stock with Fairdale Adjust-A-Rack and Skaterack.
2022 Fairdale Lookfar
The Lookfar makes cruising and commuting easy. One simple trigger shifter changes the gears up-or-down through all 8-speeds. The bike’s 42mm wide Continental tires feel fast on smooth ground while still confidently handling rough terrain.
The Lookfar comes equipped with rack and fender mounts for lots of useful set-up options. We even chose to use normal Schrader valve tubes so you won’t need to use a special bike pump.
The Lookfar shares the same proven geometry as our ever-popular Weekender model.
Sizing
X-Small: 4’11” – 5’4″ height
Small: 5’2″ – 5’7″ height
Medium: 5’7″ – 5’10” height
Large: 5’9″ – 6’1″ height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specifications
Frame: 1020 Steel, with Rack and Fender mounts
Fork: 1020 Steel, 1 1/8”
Handlebar: Fairdale Archer v3, Aluminum
Stem: 70mm, Forged Aluminum
Headset: FSA, Sealed Integrated, 45º/45º
Brake Lever: Aluminum, Short Pull
Brake: Aluminum, Dual Pivot, 55-75mm reach w/Quick Rels.
Grips: Fairdale Swan

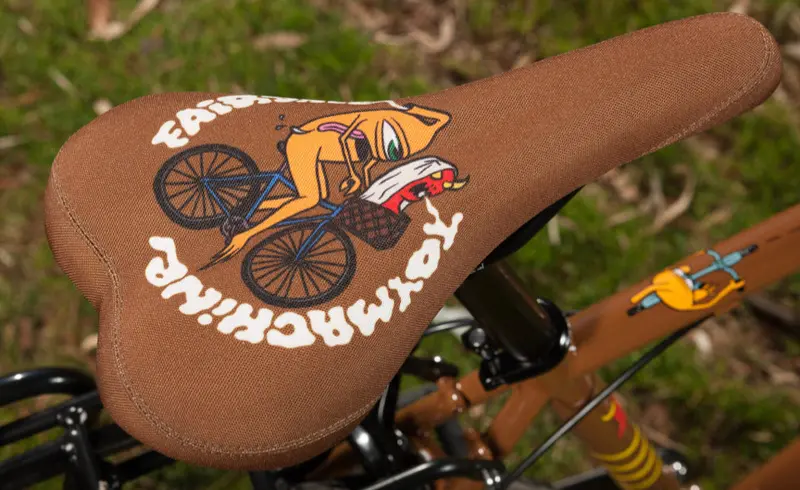

Saddle: Fairdale x Toy Machine
Seat Post: Micro adjust, 27.2mm
Seat Clamp: Fairdale, 30mm
Cranks: FSA Tempo 1X (S=165mm, M=170mm, L/XL=175mm)
Chainwheel: Toy Machine Laser-Etched Guard, 42t
BB Parts: FSA
Pedals: Odyssey Twisted PC
Rims: 700c, 36-Hole, Schrader Valve, Aluminum
Front Hub: 36H, 3/8” Axle, Aluminum Shell, Looseball
Rear Hub: 36H, 3/8” Axle, 7-Speed, Aluminum Shell, Looseball
Tires: Goodyear Transit Tour, 700c x 40mm
Chain: KMC Z8.1, 8-Speed
Driver: 8-Speed, 13-34t
R. Shift Lever: SRAM X4 Trigger, 8-Speed
*R. Shift Lever Alternate: Microshift TS39-8R, 8-Speed
R. Derailleur: SRAM X4, Mid-cage, 8-Speed
*R. Derailleur Alternate: Microshift RD-M26CS, 8-Speed
Shift Cable: Fairdale
Accessories: Fairdale Skaterack and Adjust-A-Rack
Geometry
| Size | XS (49cm) | S (52cm) | M (55cm) | L (58cm) |
| Top Tube (Effective) | 508mm | 525mm | 552mm | 578mm |
| Top Tube (Actual) | 495mm | 507mm | 531mm | 559mm |
| Seat Tube (BB Center To TT Top) | 385mm | 436mm | 490mm | 538mm |
| Seat Tube (BB Center To TT Center) |
317mm | 370mm | 448mm | 496mm |
| Seat Tube Angle | 74.5 ° | 74° | 73° | 73° |
| Head Tube Length | 100mm | 120mm | 140mm | 160mm |
| Head Tube Angle | 69.6 ° | 70° | 71° | 72.5° |
| Chain Stay Length | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1021mm | 1030mm | 1038mm | 1050mm |
| Standover | 698mm | 733mm | 780mm | 815mm |
| Stack | 521mm | 541mm | 564mm | 589mm |
| Reach | 363mm | 370mm | 379mm | 398mm |
| Fork Length | 401mm | 401mm | 401mm | 401mm |
| Fork Offset | 50mm | 50mm | 50mm | 50mm |
| BB Drop | 68mm | 68mm | 68mm | 68mm |
| Dropout Spacing | 135mm | 135mm | 135mm | 135mm |
| BB Type | English 68 | English 68 | English 68 | English 68 |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm |
| Approx. Max Tire Width | 42mm | 42mm | 42mm | 42mm |
| Wheel Size | 700c | 700c | 700c | 700c |
*Specs subject to change without notice.
